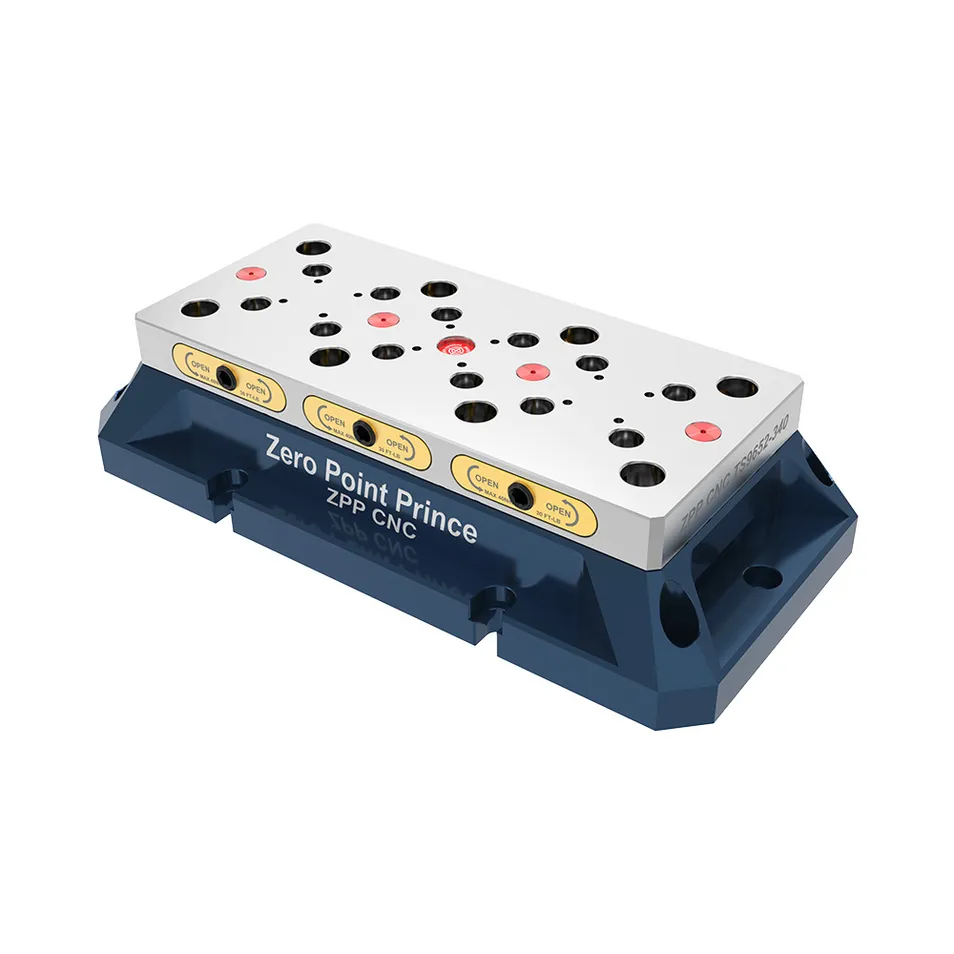

5 Axis Multi Station Adjustable Height Increasing Base for CNC Milling Workholding

Packaging Details : 35cm*28cm*32cm

Material : Stainless Steel + Aluminum

Application Scenarios : Suitable for 5 Axis CNC Machining Centers

Specification : 415mm*200mm*100mm

Model Number : TS9652-340BS

After-sales Service : 12 Months

Origin : Guangzhou, Guangdong, China

Supply Ability : 100 Pieces / Month

Logo Printing : with Logo Printing

Product Model : Ts9652-340BS

Trademark : ZPPCNC

Transport Package : Carton or Wooden Case

Repeat Positioning Accuracy : 0.01 mm

Price : US $2000 / Piece

Delivery Time : 5-10 word days

Customized : Customized

Packing : Carton or Wooden Case

Brand : Zppcnc

Weight : 22kg

Production Capacity : 5000pieces/Year

Certification : ISO 9001:2008, ISO 9001:2000, GS, CE

Place of Origin : GuangZhou

Warranty : 12 Months

Package Gross Weight : 23.500kg

Brand Name : ZPPCNC

Customization : Available

HS Code : 8466200090

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T

Model NO. : TS9652-340BS

Package Size : 45.00cm * 32.00cm * 25.00cm

Contact Now

5 Axis Multi Station Adjustable Height Increasing Base for CNC Milling Workholding

Product Description

Trademark	ZPPCNC
Place of Origin	Guangzhou, China
Brand	ZPPCNC
Product Model	TS9652-340BS
Weight	22kg
Repeat Positioning Accuracy	0.01 mm
Application Scenarios	Suitable for 5-axis, machining centers

TS9652-340BS

1. Core Advantages
(1) Raised Clearance Design to Avoid Machining Interference
Reserved ample space for tool tilting and rotation, thoroughly eliminating tool collision and interference issues during 5-axis simultaneous machining, enabling 360° unrestricted all-around machining.
(2) Zero-Point Quick Positioning for High-Efficiency Changeover
Compatible with standard and composite zero-point base plates. It supports offline workpiece clamping and on-machine rapid fixture swapping. No repeated dial indicator alignment is required, drastically shortening machine setup time and greatly boosting machine tool utilization rate.
(3) High Rigidity & Sustained Precision Stability
Machined integrally from high-strength steel, subjected to heat treatment followed by CNC precision machining and ultra-precision grinding. It boasts superior flatness with an ingenious structural design, fault-resistant performance, suitability for heavy cutting, stable clamping and excellent positioning repeatability.
(4) Diverse Sizes for Full Application Coverage
Single-station version: Ideal for prototype machining of individual & complex workpieces;
Multi-station version: Designed for long workpieces or batch clamping to realize continuous processing.
It fully meets demands for prototyping, small-batch and mass production.
(5) Strong Versatility & Flexible Modular Combination
Can be rapidly mounted onto 5-axis machine tables, and quickly fitted with various precision clamping devices including machine vises, 3-jaw chucks, dovetail clamps and custom-made fixtures. Modular fixture switching is easy and fast, compatible with all types of 5-axis machining centers.
2. Product Features
(1) Aluminum Alloy Base Paired with High-Strength Zero-Point Plate
Reduces the overall weight of the fixture. It not only withstands heavy cutting and guarantees clamping precision, but also lessens the load on 5-axis machine tools to prolong the service life of machine accuracy.
(2) CNC Precision Machining & Ultra-Fine Grinding
Guarantees outstanding flatness and perpendicularity, delivering firm, accurate clamping and consistent machining quality across batches.

Main products

Company Profile

CO-Grow Machinery Co., Ltd. was founded in 2012 and is located in Xintang Town, Zengcheng District, Guangzhou City, Guangdong Province.
We integrate R&D, production and sales, focusing on automated material libraries, zero-point quick change systems, pneumatic & manual precision vises, high-precision zero-point fixtures and other products. All our products are developed for CNC machining, enabling simpler and modular workpiece clamping with outstanding reliability, precision and stability.
At present, our company owns multiple brands including ZPPCNC, Zero Point Prince, ZPoint One and ZPclamp, alongside a number of patent certificates. Our products are sold worldwide and have gained positive feedback and valuable suggestions from global customers.
Covering an area of nearly 3,000 square meters, our factory is equipped with more than 40 sets of precision equipment such as CNC machining centers, CNC lathes and CNC grinders, and employs over 60 staff members.
We have built full industrial chain capabilities covering R&D, manufacturing, inspection, assembly, testing and sales, realizing mass production of serial products. We specialize in the research and development of quick-change fixtures within the CNC machining sector, empowering numerous CNC processing manufacturers.

Company Advantage

Our Services

Certifications

Exhibition

Packaging & Shipping

FAQ

Q1: How to select the right model?

A: Please inform us of your specifications. We will recommend the optimal model and matching fixture.

Q2: What about product quality?

A: All products undergo strict inspection and testing before delivery.

Q3: Can I enjoy OEM & ODM service?

A: We provide technical proposals and quotations based on your design requirements or samples. Production starts upon your confirmation.
